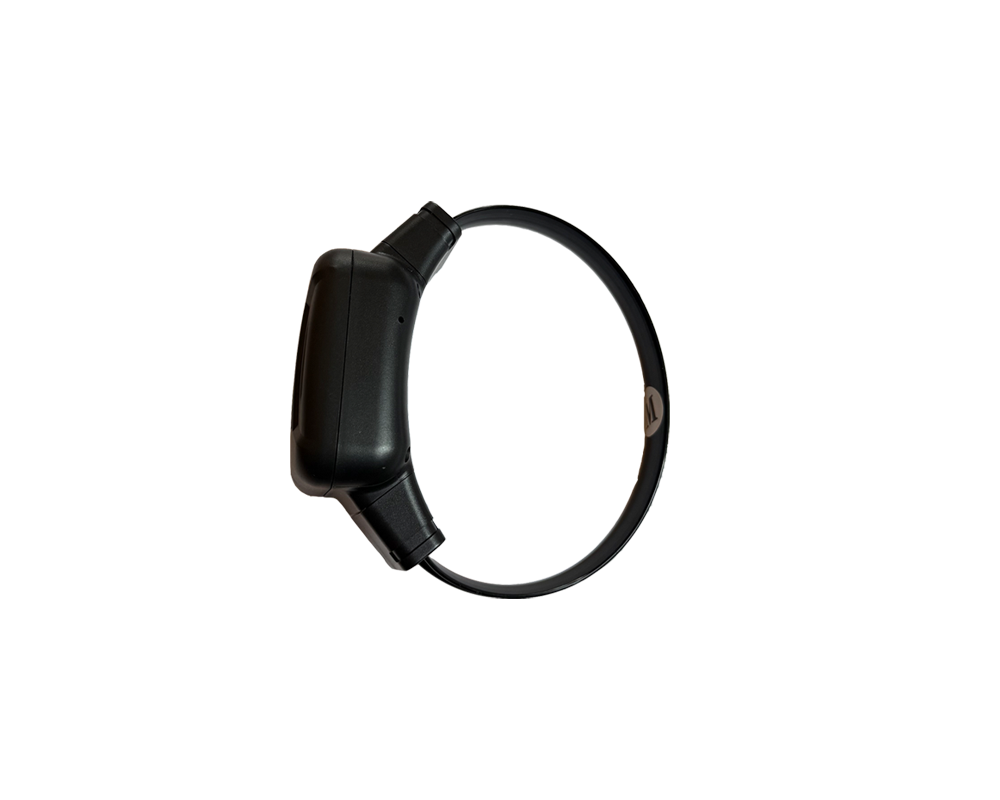

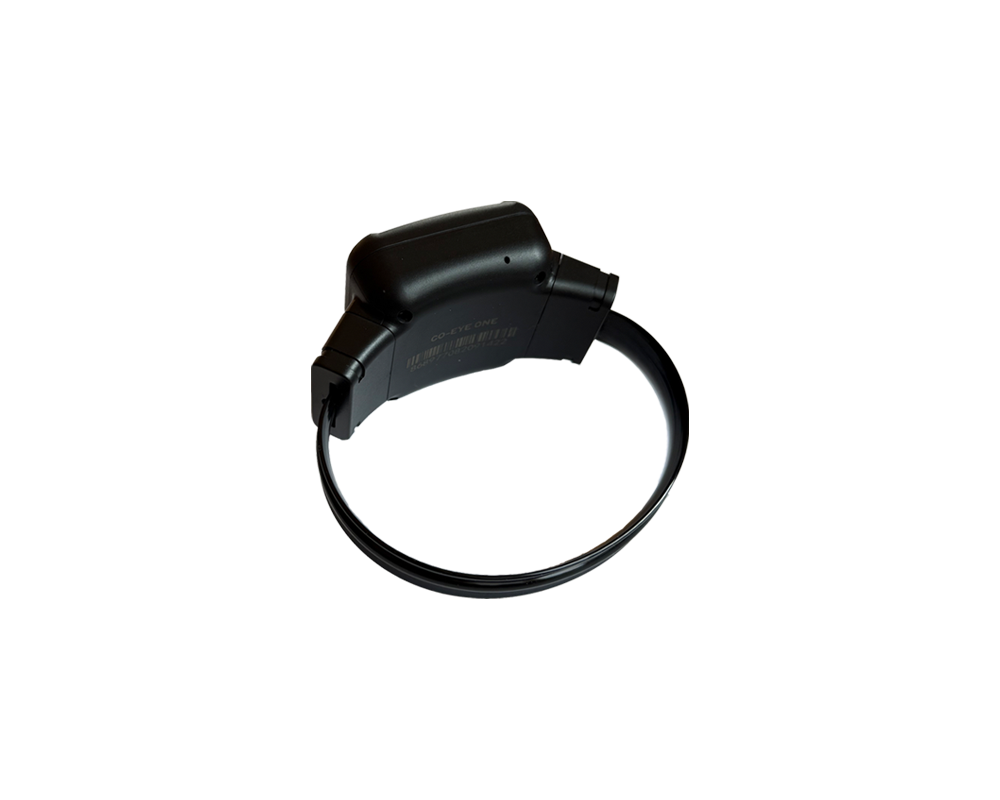

One-Piece GPS Ankle Monitor for Electronic Monitoring Programs

A self-contained one-piece GPS ankle monitor that replaces daily charging with weeks of unattended operation. Both ONE and ONE-AC models support WiFi-directed mode (~3 weeks battery, plus dead-zone coverage), while ONE-AC adds BLE-connected mode reaching 6 months. At 108 grams with fiber-optic anti-tamper detection producing zero false alarms, it is the lightest and most reliable one-piece device available for corrections, pretrial, and immigration programs.

Request a Quote

Three Connectivity Modes, One Device — No Officer Intervention Required

Traditional GPS ankle monitors burn through batteries in 24–72 hours because they run GNSS and LTE continuously — even when the participant is sleeping at home. Both CO-EYE ONE models change this with multiple operating modes that activate automatically:

WiFi-directed mode (both ONE and ONE-AC): Routes data through WiFi instead of LTE — extending battery to approximately 3 weeks while simultaneously covering cellular dead zones. A $10 WiFi repeater is all it takes.
BLE-connected mode (ONE-AC only): Pairs with the smartphone app or HouseStation and offloads all high-power operations — extending battery to approximately 6 months.
LTE standalone (both models): Full GNSS + cellular tracking for about 7 days — still 3–10× longer than most competitors.

Three Connectivity Modes, One Device — No Officer Intervention Required
Five Positioning Layers — No Blind Spots, Indoors or Out

Five Positioning Layers — No Blind Spots, Indoors or Out

GPS alone fails indoors, in basements, and in rural dead zones. The CO-EYE ONE stacks five independent positioning methods so there is always a fallback:

• Four-constellation GNSS (GPS + BeiDou + GLONASS + Galileo) — sub-2-meter outdoor accuracy
• WiFi positioning — 10–30m indoor location plus dead-zone data backhaul
• BLE proximity — confirms presence near smartphone or HouseStation without any GPS or cellular
• Cellular LBS — coarse location when GNSS is unavailable
• HouseStation verification — positive in-home confirmation for curfew programs

Built-in anti-spoofing monitors GNSS carrier-to-noise ratios and satellite constellation consistency to detect jamming and fake GPS signals.

Main Features

Ends Daily Charging for Good

A 500-enrollee program using 48-hour devices processes 50–100 low-battery alerts per day. Both CO-EYE ONE and ONE-AC run ~3 weeks on WiFi-directed mode; the ONE-AC reaches 6 months in BLE mode. Officers manage supervision instead of managing chargers.

WiFi Repeater Eliminates Dead Zones

Place a $10 WiFi repeater in a basement apartment or rural home. The device automatically routes data through WiFi instead of LTE — solving the coverage problem and extending battery life simultaneously. One fix, two results.

Fiber Optic Anti-Tamper with Zero False Alarms

Fiber optic continuity on strap and case delivers binary tamper evidence without the 15–30% false-positive noise common to skin-sensing loops. Optional steel cut-resistant strap protects high-risk caseloads; 3-month+ tamper awareness remains after battery depletion.

3-Second Tool-Free Installation

Patented snap-on design delivers 3-second tool-free installation and removal—no torque drivers or strap presses in the field. Pre-configured S/M/L/XL TPU fiber optic straps preserve tamper evidence from the first click.

108g Lightest One-Piece Design

At 108g in a 60×58×24mm footprint, CO-EYE ONE is the lightest one-piece GPS ankle monitor in its class—40–55% lighter than typical 150–252g alternatives—improving comfort, stigma, and long-shift wearability.

5G Compatible LTE-M/NB-IoT + eSIM

Future-proof cellular with 5G compatible LTE-M/NB-IoT/GSM, dual-path connectivity, and ONE-AC eSIM + Nano SIM management. HTTPS/SSL, AES128/256 transport, and CyberSecurity EN 18031 certification keep data paths hardened.

Technical Specifications

ParameterCO-EYE ONECO-EYE ONE-AC
Size / Weight60*58*24mm, 108g60*58*24mm, 115g
Operating Temperature-20 to +60 °C-20 to +60 °C
WaterproofIP68 CertifiedIP68 Certified
Cellular Network5G compatible LTE-M / NB-IoT / GSM/GPRS/EDGE, Nano SIM5G compatible LTE-M / NB-IoT / GSM/GPRS/EDGE, eSIM + Nano SIM
Anti-JammingLTE-M/NB/GSM/GPS optionalLTE-M/NB/GSM/GPS optional
WiFi Network2.4G WiFi communication2.4G WiFi communication
Geo-locate TypeGPS / BeiDou / Galileo / GLONASS / LBS / WiFiGPS / BeiDou / Galileo / GLONASS / LBS / WiFi
GPS Accuracy< 2m CEP< 2m CEP
BLE Connected ModeN/AAMClient / HouseStation / Apps, up to 180 days battery
Battery Life (5 min interval, LTE-M/NB)Standalone: ~7 days / WiFi-directed: ~3 weeksStandalone: ~7 days / WiFi-directed: ~3 weeks / BLE-connected: ~6 months
Battery Capacity1700mAh1700mAh
Recharge Time2.5 hours2.5 hours, NTC protection enabled
ChargingMagnetic charging or mobile power bankMagnetic charging or mobile power bank
Anti-tamperFiber optic strap / caseFiber optic strap / case
On-board SensorsBluetooth, accelerometerBluetooth, accelerometer
On-board Storage2M, up to 5,000 events8M, up to 20,000 events
CPUMain processor: RISC 32-bit MCUMain processor: ARM M3, Co-processor: ARM M0
SecurityHTTPS/SSL, AES128/256HTTPS/SSL, AES128/256
CyberSecurityEN 18031EN 18031
European NB CERED / EMC / SAR / LVDRED / EMC / SAR / LVD
Material SafetyRoHS / REACH / WEEERoHS / REACH / WEEE
Battery SafetyIEC62133 / 62321 / UN38.3IEC62133 / 62321 / UN38.3
Strap TypeRegular TPU / Steel-Armed TPU strapRegular TPU / Steel-Armed TPU strap
InteractionLED / SOS button / vibratorLED / SOS button / vibrator
Install or Removal< 3 seconds< 3 seconds
UpgradeRemote OTA from CO-EYE platformRemote OTA from CO-EYE platform

Frequently Asked Questions

Why does CO-EYE ONE have WiFi-directed and BLE modes instead of just LTE?
Running GPS + LTE around the clock is why legacy devices die in 24–72 hours. Both ONE and ONE-AC support WiFi-directed mode — routing data through WiFi instead of LTE — extending battery to about 3 weeks while also covering cellular dead zones. The ONE-AC adds BLE-connected mode that offloads positioning to a smartphone or HouseStation, reaching up to 6 months. The device switches automatically based on what connectivity is available.
What is the battery life of the CO-EYE ONE?
Both ONE and ONE-AC deliver about 7 days standalone on LTE and approximately 3 weeks in WiFi-directed mode. The ONE-AC adds BLE-connected mode reaching up to 6 months when paired with a smartphone or HouseStation. The device switches between modes automatically. Full recharge takes 2.5 hours via magnetic cradle.
How does the fiber optic anti-tamper detection work?
The CO-EYE ONE employs multiple layers of anti-tamper protection: fiber optic loops on both the strap and device case (zero false-positive rate — the light signal is either intact or broken), electronic induction for strap lifting detection, and mechanical destructive removal protection that preserves physical evidence. Uniquely, tamper detection continues for 3+ months even after the battery is completely depleted. Optional steel-armed fiber optic straps are available for high-risk offenders.
How do you handle monitoring in basements and rural areas with no cell signal?
Place an inexpensive WiFi repeater or use the home router. The device detects WiFi and routes data through it instead of LTE — no firmware change, no officer configuration. For indoor presence confirmation, BLE pairing with HouseStation verifies the enrollee is home without requiring any GPS or cellular signal at all.
How quickly can the CO-EYE ONE be installed?
The CO-EYE ONE features a patented snap-on design that allows installation in under 3 seconds without any tools. Pre-configured S/M/L/XL TPU fiber optic straps enable immediate deployment — officers simply pick and click. The same mechanism preserves electronic and physical tamper evidence.
How does CO-EYE ONE compare to SCRAM, BI, and other GPS ankle monitors?
Most current devices are single-mode (always-on LTE) with 24–72 hour batteries, PPG or resistive tamper sensors that false-alarm 15–30% of the time, and 150–250g weight. CO-EYE ONE weighs 108g, runs 7 days standalone or 3 weeks on WiFi (ONE-AC adds 6 months via BLE), uses fiber-optic tamper detection with zero false positives, and achieves sub-2m GPS accuracy. Both models maintain supervision through WiFi when cellular is unavailable.
